Automatic Closed Flash Point Tester | VS-9806
Products Details
Closed flash point is an important safety and quality indicator for petroleum products and oil samples. It represents the lowest temperature at which vapor generated from the sample can form a flammable mixture with air and flash when exposed to an ignition source under specified test conditions. For oil storage, transportation, use, and maintenance, flash point data helps users evaluate volatility, contamination risk, and safe handling requirements.

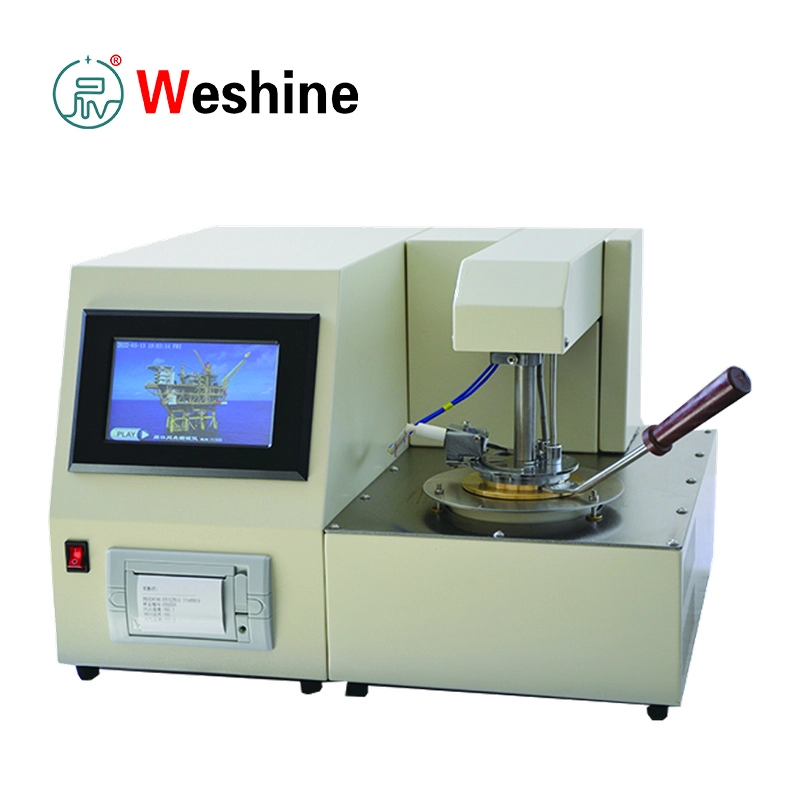

The VS-9806 Automatic Closed Flash Point Tester is developed for automatic flash point determination in laboratory and industrial testing environments. It uses computer-controlled heating and temperature acquisition. During the test, the sample is placed in the test cup and heated according to the required rate. The instrument controls the opening, ignition, detection, and data processing process automatically.
The instrument adopts a color touch-screen interface with menu-based input. Users can enter parameters such as preset flash temperature, sample number, atmospheric pressure, test date, test time, and selected standard. The interface provides operation prompts, helping users complete setup more smoothly and reducing errors caused by manual operation.
During testing, the system scans temperature change, controls the heater through the internal control circuit, and performs ignition at the specified timing. When flash is detected, the instrument stops data collection, locks the flash temperature, closes ignition, stops heating, stores the result, and prints the test record. Atmospheric pressure correction can be applied by entering the local pressure value, which helps compensate for regional altitude differences.
The VS-9806 uses electronic ignition with a silicon nitride ignition head. The test arm can rise and fall automatically, reducing manual intervention around the hot test area. The system also includes automatic deviation correction, differential detection, and software prompts for incorrect operation. These functions make the instrument practical for laboratories that require clear test workflow and stable records.
The tester is widely used in petroleum product inspection, power transformer oil testing, railway and aviation oil testing, industrial lubricant monitoring, and scientific research. It is suitable for organizations that need a benchtop automatic closed cup flash point tester for routine quality control and safety assessment.
Specification
| Technical Parameters | |
| Item | Specification |
| Product model | VS-9806 |
| Product type | Automatic Closed Flash Point Tester |
| Test method | Closed cup flash point test |
| Applicable standards stated in manual | GB/T 261-08, GB/T 261-21 |
| Temperature measurement range | 50°C to 380°C |
| Repeatability | ≤2°C |
| Reproducibility | ≤±4°C |
| Resolution | 0.1°C |
| Accuracy | 0.50% |
| Heating rate | Complies with GB/T 261-21 and GB/T 261-08 |
| Ignition method | Electronic ignition |
| Ignition head | Silicon nitride ignition head |
| Atmospheric pressure correction | Supported |
| Display | Color touch screen |
| Test arm | Automatic lifting and lowering |
| Operating temperature | 10°C to 40°C |
| Relative humidity | ≤85% |
| Power supply | AC 220 V, 50 Hz ±5% |
| Power consumption | <300 W |
| Dimensions | 405 mm × 330 mm × 270 mm |
| Weight | About 11.1 kg |
Product Guide
Before testing, place the VS-9806 in a clean environment without corrosive gas. Check the instrument, accessories, power cable, ground wire, oil cup, fuse, and printer paper before use. The test cup should be cleaned with petroleum ether before adding a new sample, especially when switching between different oil products.
Connect the power cable to the AC 220 V supply and turn on the instrument. After entering the system through the touch screen, the operator can run the self-check interface and raise the test arm. The cleaned test cup is filled with the oil sample to the specified mark, then placed into the heating bath. After that, the test arm is lowered automatically to the lower position.
Before starting the test, enter the required parameters on the screen, including preset flash temperature, sample number, atmospheric pressure, and test standard. Atmospheric pressure input is important because different altitude conditions can create relative deviation in flash point results. The instrument can automatically correct the effect of atmospheric pressure and calculate the corrected value.
After the test begins, the VS-9806 automatically heats the sample, controls the ignition timing, opens the cover, detects flash, and monitors temperature. When flash occurs, the system locks the flash point temperature, stops heating, turns off electronic ignition, stores the related data, and allows the result to be printed.
Users can enter the record review page to check historical results. The previous and next page keys allow the operator to browse saved records, and the output key prints the selected content. For routine laboratory use, this helps maintain traceable records for oil sample testing.
To protect the heating system, the instrument should not be started without oil in the test cup. The lifting mechanism should not be forced manually. Between two oil sample tests, the manual specifies a 15-minute interval to avoid errors in heating rate calculation.
Features
- Supports automatic closed cup flash point testing for petroleum products and oil samples.
- Measures flash point according to the closed cup test method.
- Automatically controls heating, opening, ignition, flash detection, result storage, and printing.
- Provides heating rate control compliant with GB/T 261-08 and GB/T 261-21.
- Automatically corrects the influence of atmospheric pressure and calculates corrected results.
- Uses differential detection and automatic system deviation correction.
- Displays operation menus and test results on a color touch screen.
- Provides parameter prompts for preset temperature, sample number, pressure, date, and time.
- Includes automatic lifting and lowering of the test arm.
- Uses electronic ignition with a silicon nitride ignition head.
- Automatically locks the flash point temperature when flash occurs.
- Stores historical records for review.
- Includes built-in printing for test reports.
- Provides software prompts for incorrect operation.
Application Scenarios
The VS-9806 is suitable for petroleum product quality control where flash point is required for safety classification, batch acceptance, storage management, or routine laboratory reporting. Refineries, oil storage companies, fuel suppliers, and inspection laboratories can use the instrument for closed cup flash point measurement.
In power systems, the tester can be used for transformer oil and insulating oil inspection. Flash point data helps evaluate whether oil has been contaminated with lighter fractions or degraded in a way that may affect safe operation and handling. It can be used together with acid value, moisture, dielectric strength, and other oil tests.
In railway and aviation maintenance, fuel and lubricating oil safety properties must be monitored. The VS-9806 provides automatic heating, ignition, and result recording, which supports routine oil inspection work in maintenance laboratories.
For industrial plants, the instrument is useful for lubricating oil, hydraulic oil, and other petroleum-based liquid testing. Maintenance teams can use flash point data as part of oil condition monitoring and safety control, especially when oil is used in high-temperature or high-load equipment.
For research and testing institutions, the VS-9806 provides a benchtop automatic closed flash point testing solution with parameter input, pressure correction, record storage, and printing. It supports repeatable testing and reduces manual intervention around hot samples and ignition operations.
Applications
The VS-9806 Automatic Closed Flash Point Tester is used by power utilities, oil laboratories, petroleum companies, railway departments, aviation fuel testing organizations, industrial plants, universities, research institutes, and third-party inspection companies. It is suitable for closed cup flash point testing of petroleum products and oil samples where safety, quality, and compliance records are required.
Typical samples include transformer oil, insulating oil, turbine oil, lubricating oil, fuel oil, hydraulic oil, and other applicable petroleum products. For B2B procurement and SEO, the product can be described as an automatic closed flash point tester, closed cup flash point analyzer, petroleum flash point tester, oil flash point testing instrument, and automatic flash point meter.
Customer Case
A transformer maintenance laboratory needed to evaluate flash point together with other oil condition indicators for oil samples collected from several substations. The laboratory wanted a more automated method because manual testing required close attention during heating and ignition, and the staff needed consistent printed records for each sample.
The laboratory used the VS-9806 Automatic Closed Flash Point Tester for routine closed cup flash point measurement. Before each test, the technician cleaned the oil cup, added the sample to the specified mark, entered the sample number and atmospheric pressure, and selected the required test settings from the touch screen.
During the test, the instrument automatically controlled heating, cover opening, electronic ignition, and flash detection. When the flash occurred, the system locked the temperature and stored the result. The technician then printed the test record and added it to the oil sample file together with moisture, acid value, and dielectric strength results.
The automatic workflow reduced manual intervention and helped the laboratory maintain clearer records. The customer used the flash point data to identify oil samples requiring closer review before reuse or continued service.
FAQ
- What is the VS-9806 used for?
The VS-9806 is used to determine the closed cup flash point of petroleum products and oil samples. It helps users evaluate volatility, safety, contamination risk, and oil quality. - What standards does the instrument follow?
The manual states that the instrument complies with GB/T 261-08 and GB/T 261-21 for closed cup flash point testing. - What is the temperature measurement range?
The temperature measurement range is 50°C to 380°C, with 0.1°C resolution. - What ignition method does it use?
The VS-9806 uses electronic ignition with a silicon nitride ignition head. - Can it correct atmospheric pressure influence?
Yes. The operator can input atmospheric pressure, and the instrument can automatically calculate the corrected flash point value. - Does the test arm move automatically?
Yes. The test arm can automatically rise and lower, reducing manual operation during the test setup. - Can the instrument print test results?
Yes. It includes result storage and printing functions for test records. - What power supply is required?
The instrument uses AC 220 V, 50 Hz ±5%, with power consumption below 300 W. - What should be avoided during operation?
Do not start heating without oil in the test cup, do not force the lifting mechanism manually, and clean the oil cup when changing samples. - Where is the VS-9806 commonly used?
It is commonly used in oil laboratories, power utilities, petroleum testing, railway and aviation maintenance, industrial plants, and research institutions.
Weshine Advantages
Weshine Electric provides oil testing and electrical diagnostic instruments for utilities, substations, laboratories, industrial users, petroleum testing customers, and inspection service providers. For the VS-9806 Automatic Closed Flash Point Tester, Weshine supports customers with model selection, technical parameter confirmation, operation guidance, documentation, and after-sales service.
Flash point testing requires controlled heating, reliable ignition, clear detection, and traceable records. The VS-9806 helps users complete closed cup flash point testing with automatic operation, pressure correction, result storage, and report printing.
For overseas distributors and project buyers, Weshine can provide product information and application support for procurement documents, laboratory setup, training, and resale preparation. The VS-9806 is suitable for customers looking for an automatic closed cup flash point tester for petroleum products, transformer oil, insulating oil, and industrial oil testing.
