Automatic Open Flash Point Tester | VS-9806A
Products Details
Open flash point is an important indicator for petroleum products and oil samples. It shows the temperature at which vapor from the sample can ignite briefly in open cup test conditions. For oil storage, transportation, equipment maintenance, and quality inspection, flash point data helps users evaluate volatility, contamination by lighter fractions, and safe handling requirements.

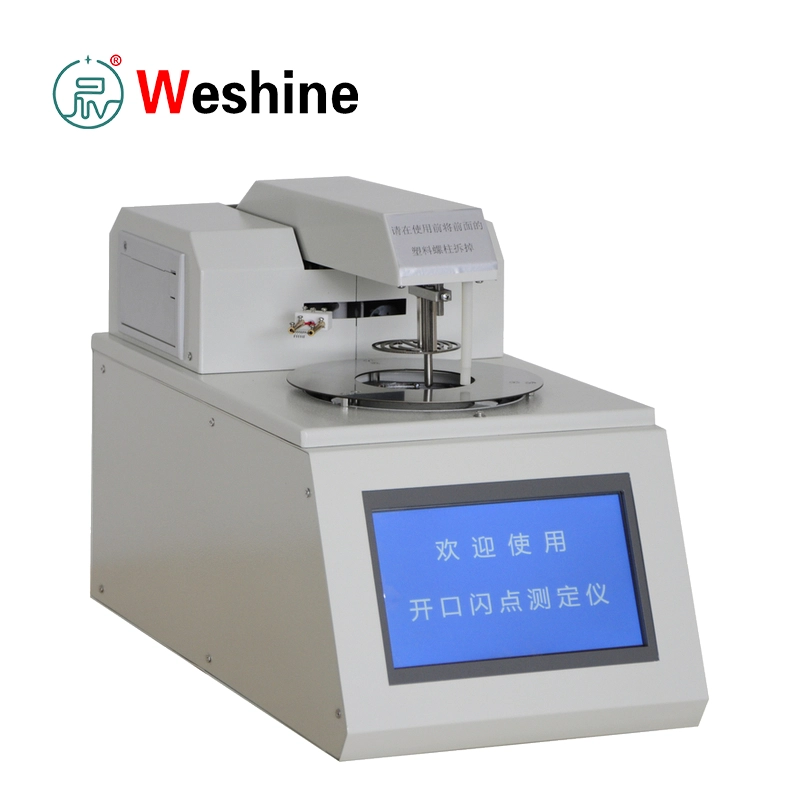

The VS-9806A Automatic Open Flash Point Tester is developed for automatic open cup flash point analysis. It uses an ARM series microprocessor, electrically erasable memory, a 7-inch color LCD touch screen, and PID self-tuning control. The instrument controls the heating curve according to GB/T 3536-2008 and GB/T 267-88 method requirements and displays sample temperature, set values, test status, pressure data, and flash point results during operation.
Unlike gas ignition systems, the VS-9806A uses electric ignition and does not require combustible gas. When the sample temperature approaches the expected flash point, the CPU controls the electric ignition system and automatic sweep movement. Once flash is detected, the instrument locks the flash point value, stops heating, saves the result, prints the record, and starts forced air cooling for the heater.
The system provides four main interface areas: sample testing, system self-check, system setting, and historical records. In the setting interface, the operator can select the test standard, enter the preset flash point, sample name, operator name, print setting, print mode, and time. The historical record interface allows users to browse stored test results, clear stored records, and print selected records.
The VS-9806A can store up to 1000 measurement results and includes a real-time clock with power-off retention. Automatic atmospheric pressure detection and correction help reduce the influence of pressure variation on test results. Temperature over-limit detection can stop testing automatically and provide alarm prompts.
This instrument is suitable for laboratories that need stable open cup flash point testing with automatic heating, ignition, detection, cooling, printing, and record management. It is used in petroleum, power, chemical, inspection, and industrial oil testing applications.
Specification
| Technical Parameters | |
| Item | Specification |
| Product model | VS-9806A |
| Product type | Automatic Open Flash Point Tester |
| Detection type | Open flash point |
| Applicable standards stated in manual | GB/T 3536-2008, GB/T 267-88 |
| Measurement range | 40°C to 400°C |
| Temperature detection | Platinum resistance |
| Accuracy | ±1°C |
| Resolution | 0.1°C |
| Repeatability | Complies with GB/T 3536-2008 and GB/T 267-88 |
| Same-sample repeat difference | ≤4°C under compliant test conditions |
| Display | 7-inch color LCD touch screen |
| Data storage | Up to 1000 test results |
| Ignition method | Electric ignition |
| Cooling method | Forced air cooling |
| Atmospheric pressure correction | Automatic pressure detection and automatic result correction |
| Printer | Dot-matrix thermal printer |
| Self-check functions | Lifting rod, sweep rod, printing and related functions |
| Power consumption | ≤600 VA |
| Power supply | AC 220 V ±11 V, 50 Hz ±2.5 Hz |
| Operating temperature | 10°C to 35°C |
| Operating humidity | ≤90% |
| Package weight | About 17 kg |
Product Guide
Install the VS-9806A on a stable workbench that is not exposed to direct sunlight or strong air flow. The manual recommends using the instrument in a fume hood, but the fan should not be turned on during sample testing because air flow can affect the flash point result. The instrument should be connected to a 220 V, 50 Hz single-phase AC power supply, with voltage fluctuation not greater than 5%; a 1000 W AC stabilizer can be used when needed.
After power-on, the lifting rod rises automatically and the instrument displays the startup interface. The operator can enter the sample test interface, system self-check interface, system setting interface, or historical record interface from the touch screen. Before formal testing, the self-check functions can be used to verify lifting rod movement, sweep rod movement, electric ignition, fan operation, flash detection, and printing.
In the system setting interface, select the required test standard, such as GB267-88 or GB3536-2008, then set the preset flash point, sample name, operator, print status, print mode, and time. The preset flash point helps the instrument control the test process and determine when ignition should begin.
Pour the sample into the open cup according to the expected flash point. Samples below 210°C should be filled to the upper mark, while samples above 210°C should be filled to the lower mark. Place the sample cup on the heater, enter the sample test interface, and press start. The lifting rod drops automatically and the test begins.
During testing, the instrument heats the sample according to the standard method curve. When the sample temperature approaches the flash point, the electric ignition system starts and the ignition rod sweeps automatically. When flash occurs, the instrument locks the flash point value, raises the lifting rod, displays the result, prints the record, saves the data, stops heating, and starts forced air cooling.
After testing, remove the sample cup only after the cup and heater have cooled. Clean the open cup before changing samples. The flash sensor should be cleaned carefully with gasoline or petroleum ether if oil contamination accumulates, because contamination may affect detection accuracy.
Features
- Supports automatic open cup flash point testing for petroleum products and oil samples.
- Measures open flash point according to GB/T 3536-2008 and GB/T 267-88 method requirements.
- Provides electric ignition without combustible gas.
- Automatically controls heating, ignition sweep, flash detection, cooling, storage, and printing.
- Uses ARM microprocessor control and PID self-tuning heating regulation.
- Displays sample temperature, set values, atmospheric pressure, and flash point results on a 7-inch color touch screen.
- Automatically detects atmospheric pressure and corrects test results.
- Stores up to 1000 measurement results.
- Includes real-time clock with date and time display.
- Provides thermal printer output for test records.
- Supports self-check functions for lifting rod, sweep rod, ignition, fan, flash detection, and printing.
- Automatically stops testing and alarms when temperature exceeds the limit.
- Includes forced air cooling after testing.
- Supports Chinese character input for sample name and operator identification.
Application Scenarios
The VS-9806A is suitable for petroleum product quality control where open cup flash point is required for safety classification, quality verification, batch acceptance, and product documentation. Petroleum companies and inspection laboratories can use it for routine flash point measurement of applicable petroleum samples.
In power systems, the instrument can be used for transformer oil, insulating oil, turbine oil, and lubricating oil evaluation. Flash point testing helps maintenance teams identify possible contamination by light oil fractions and supports safe handling of oil used in electrical equipment.
In chemical and industrial plants, the VS-9806A can support lubricant and process oil testing. Maintenance departments can use flash point data together with viscosity, moisture, acidity, and other oil test results to evaluate whether the oil remains suitable for continued service.
For commodity inspection and testing agencies, the instrument provides automatic operation, historical storage, pressure correction, and printing, which helps maintain traceable test records for customer samples.
For laboratories replacing gas ignition equipment, the electric ignition design reduces the need for combustible gas supply and simplifies routine testing setup.
Applications
The VS-9806A Automatic Open Flash Point Tester is used by power utilities, petroleum laboratories, chemical companies, oil inspection centers, industrial maintenance departments, research institutes, and third-party testing organizations. It is suitable for open cup flash point testing of petroleum products and related oil samples.
Typical samples include transformer oil, insulating oil, turbine oil, lubricating oil, fuel oil, hydraulic oil, and other applicable petroleum-based liquids. For international B2B search positioning, the product can be described as an automatic open flash point tester, open cup flash point analyzer, petroleum flash point tester, oil flash point testing instrument, and automatic open cup flash point meter.
Customer Case
An industrial oil testing laboratory needed to test open flash point for multiple lubricant and insulating oil samples. The previous workflow used manual observation and required additional preparation for ignition, making testing slower and more dependent on operator experience.
The laboratory used the VS-9806A Automatic Open Flash Point Tester to standardize the process. Technicians selected the test standard, entered the preset flash point and sample name, filled the sample cup according to the expected flash point range, and started the test from the touch screen.
The instrument automatically controlled heating, electric ignition, sweep movement, flash detection, result locking, printing, storage, and cooling. The automatic atmospheric pressure correction helped the laboratory keep results more consistent across seasonal pressure changes.
After implementation, the laboratory used stored records and printed reports for customer documentation. The automated workflow reduced manual observation work and helped technicians maintain a more repeatable open flash point testing process.
FAQ
- What is the VS-9806A used for?
It is used to measure the open cup flash point of petroleum products and oil samples, helping users evaluate volatility, safety, and oil quality. - What standards does it follow?
The manual states that the instrument meets the method requirements of GB/T 3536-2008 and GB/T 267-88. - What is the measurement range?
The measurement range is 40°C to 400°C. - Does it use gas ignition?
No. The VS-9806A uses electric ignition and does not require combustible gas. - Can it correct atmospheric pressure influence?
Yes. It automatically detects atmospheric pressure and corrects the test result. - How many records can it store?
The instrument can store up to 1000 measurement results. - Does it include printing?
Yes. It includes a dot-matrix thermal printer for test record output. - What should be avoided during operation?
Avoid strong air flow, direct sunlight, forcing the lifting or sweep mechanism by hand, and testing with a dirty open cup or contaminated flash sensor. - What power supply is required?
The instrument uses AC 220 V ±11 V, 50 Hz ±2.5 Hz. - Where is this tester commonly used?
It is commonly used in petroleum, power, chemical, commodity inspection, industrial maintenance, and laboratory testing applications.
Weshine Advantages
Weshine Electric provides oil testing and electrical diagnostic instruments for utilities, substations, laboratories, petroleum users, industrial plants, and inspection service providers. For the VS-9806A Automatic Open Flash Point Tester, Weshine supports customers with model selection, technical parameter confirmation, operation guidance, documentation, and after-sales service.
The VS-9806A helps users complete open cup flash point testing with automatic heating control, electric ignition, pressure correction, result storage, printing, and forced cooling. It is suitable for customers who need a practical automatic open flash point analyzer for petroleum products, transformer oil, insulating oil, and industrial oil testing.
