Suspension Insulator Resistance Tester | VS-8612

Products Details

The VS-8612 Suspension Insulator Resistance Tester is specifically designed for outage inspection of disc suspension insulators used on transmission lines, substations, railway power systems, and industrial distribution networks. Insulators are critical components in power grids. They must withstand mechanical load, electrical stress, lightning, sunlight, rain, pollution, and long-term outdoor aging. When an insulator deteriorates, its insulation resistance decreases. If deterioration continues, the insulator may become a zero-value insulator and no longer meet operating insulation requirements.

By measuring the insulation resistance of each unit in an insulator string, maintenance personnel can identify the insulation condition of every disc and find hidden internal defects that may not be visible from appearance inspection. As an essential testing instrument within our comprehensive high voltage insulator tester category, the VS-8612 provides crucial quantitative data for grid preventive maintenance programs.

The instrument applies a DC 5000 V ±5% test voltage between the metal fittings at both ends of the tested insulator. The measuring range is 100 MΩ to 3000 MΩ, with 1 MΩ resolution. When the measured value is below the alarm threshold of 500 MΩ, the instrument gives an audible alarm. When the resistance is higher than 3000 MΩ, the screen displays 9999 MΩ.

The tester supports two operating modes: Real-Time Test and Storage Test. Real-time test is suitable for fast inspection when data storage is not required. Storage test is used when the operator needs to save measurement results for later analysis. In storage mode, test records can be stored by tower number and insulator string number. The string number format can include circuit number, phase, and string position, such as 4A2 for circuit 4, phase A, string 2. Historical records can be searched by date folder, tower number, and string number.

The instrument can be used independently or with an insulating operating rod according to field conditions. During measurement, the probes are installed in the slots on both sides of the front end of the tester. The operator places the tester on the insulator so that the probes contact the metal fittings at both ends of the insulator. Measurement can be triggered from the screen or by pushing the tester forward to activate the measurement switch against the insulator shed. After the audible prompt, the measured resistance value is held and the instrument can be removed from the insulator.

The VS-8612 is compact and lightweight, with a complete unit weight of only 360 g. It uses a 3.7 V rechargeable lithium battery and supports at least 8 hours of continuous operation. The supplied standard resistor allows the user to check instrument performance. If the measured value of the standard resistor exceeds the allowable error range, the instrument should be returned to the manufacturer for recalibration.

Judgment Basis & Referenced Standards

The manual references DL/T596-2021 (Preventive Test Code for Electric Power Equipment) and DL/T626-2015 (Detection Code for Deteriorated Suspension Insulators). According to the stated judgment basis:

• 500 kV and above voltage levels: An insulator with insulation resistance below 500 MΩ is judged as deteriorated.

• 330 kV and below voltage levels: An insulator with insulation resistance below 300 MΩ is judged as deteriorated.

Technical Specifications

System Specifications
Item	Specification
Product model	VS-8612
Product type	Insulator resistance tester
Applicable object	Disc suspension insulators
Test condition	Outage inspection
Display	LCD screen
Operating modes	Real-time test, storage test
Data management	Stored by tower number and string number
Alarm function	Low-resistance audible alarm
Use method	Standalone use or with insulating operating rod



Measurement Specifications
Item	Specification
Test voltage	DC 5000 V ±5%
Measurement range	100 MΩ to 3000 MΩ
Alarm threshold	500 MΩ
Resolution	1 MΩ
Measurement error	±50 MΩ or ±5%
High resistance display	9999 MΩ when measured value is greater than 3000 MΩ



Judgment Basis
Voltage Level	Deteriorated Insulator Judgment
500 kV and above	Insulation resistance below 500 MΩ
330 kV and below	Insulation resistance below 300 MΩ



Power Supply
Parameter	Specification
Item	Specification
Battery	3.7 V rechargeable lithium battery
Continuous use time	≥8 hours
Charger	4.2 V / 1 A
Charging time note	About 6 hours when battery is too low



Environmental Conditions
Item	Specification
Operating temperature	-25°C to +50°C
Operating humidity	≤95%



Dimensions And Weight
Item	Specification
Complete unit weight	360 g



Referenced Standards
Standard	Name
DL/T596-2021	Preventive Test Code for Electric Power Equipment
DL/T626-2015	Detection Code for Deteriorated Suspension Insulators



Packing List
No.	Item	Specification / Model	Quantity	Remark
1	Insulator resistance tester	VS-8612	1 set

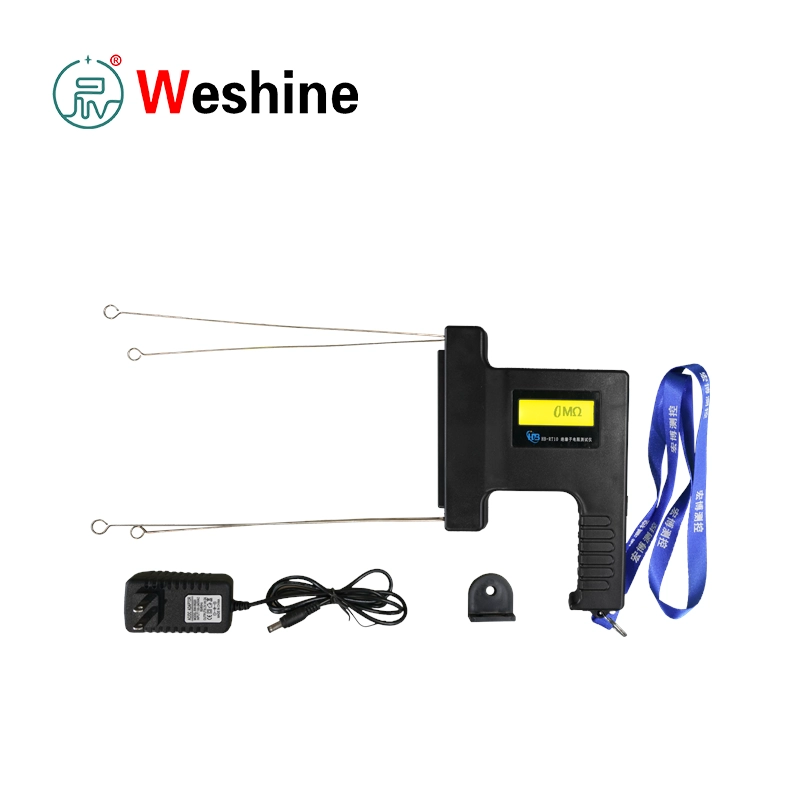

2	Probe	Soft probe	2 pcs
3	Probe	Hard probe	2 pcs
4	Charger	4.2 V / 1 A	1 pc
5	Insulating rod connector		1 pc
6	M6 bolt		2 pcs	For fixing insulating rod connector
7	Strap		1 pc
8	Standard resistor	500 MΩ	1 pc	For instrument checking
9	User manual		1 copy
10	Warranty card		1 copy
11	Factory inspection report		1 copy
12	Certificate		1 copy

Product Guide

How the VS-8612 Works

The VS-8612 works by applying a DC 5000 V test voltage across the two metal fittings of a disc suspension insulator and measuring the insulation resistance between them. A healthy insulator maintains high resistance. A deteriorated or zero-value insulator shows reduced resistance, which can be identified by the instrument reading and alarm function.

Operating Instructions

1. Preparation: Install the soft or hard probes into the slots on both sides of the tester front end. Switch on the instrument and check the battery level, date, and time. Choose whether to use the tester directly or connect it to an insulating operating rod according to site position and safety requirements.

2. Mode Setup:

   • Real-Time Test: Selected for fast inspection when the line is de-energized and data storage is not required.

   • Storage Test: Selected for recordable inspection. Enter the four-digit tower number, then enter the three-character string number (e.g., 4A2: circuit 4, phase A, string 2).

3. Executing Measurement: Place the instrument on the tested insulator and ensure that the two probes make reliable contact with the metal fittings at both ends. Start measurement by pressing the measurement key on the screen or by pushing the tester forward to trigger the measurement switch against the insulator shed. When the tester gives a prompt sound, measurement is complete and the resistance value is held on the screen.

4. Alarm Handling: If the measured value is below 500 MΩ, the tester emits a continuous alarm. If the measured value is higher than 3000 MΩ, the screen displays 8888 MΩ. After measurement, move to the next insulator unit and repeat.

5. Safety Precautions: Do not touch the upper and lower probes at the same time because 5000 V high voltage exists between the probes during measurement. After testing, switch off the power before removing the probes. Equipment with high capacitance should be discharged promptly after measurement to prevent electric shock risk.

Features

• Supports quantitative insulation resistance testing of disc suspension insulators.
• Measures each insulator unit in a string during outage maintenance.
• Provides DC 5000 V ±5% test voltage.
• Measures insulation resistance from 100 MΩ to 3000 MΩ.
• Displays resistance value on an LCD screen.
• Detects low-value and zero-value insulators.
• Automatically alarms when the measured value is below 500 MΩ.
• Provides 1 MΩ measurement resolution.
• Supports real-time test mode for quick inspection.
• Supports storage test mode for recordable field testing.
• Includes tower number and string number data management.
• Stores measurement data for later report generation and analysis.
• Provides historical record query by date, tower number, and string number.
• Includes soft probes and hard probes for different field contact conditions.
• Supports use with an insulating operating rod.
• Includes a 500 MΩ standard resistor for instrument checking.
• Provides audible prompt after measurement completion.
• Displays 9999 MΩ when measured value is greater than 3000 MΩ.
• Includes a rechargeable lithium battery for field operation.
• Provides at least 8 hours of continuous use after charging.

Applications & Use Cases

Application Scenarios

• Power Utilities: Outage inspection of transmission line and substation suspension insulators. Quantitative resistance data helps identify deteriorated units before they affect grid reliability.

• Transformer Manufacturers: Inspection of supporting insulation components where disc suspension insulators are used in test fields or auxiliary high-voltage systems.

• Power Plants: Maintenance teams during planned outage inspection of switchyard insulator strings.

• Railways: Railway power supply systems and traction power facilities exposed to weather, pollution, and vibration.

• Industrial Plants: Mining, metallurgy, petrochemical, and large manufacturing plants during maintenance shutdowns.

• Universities & Training Centers: Practical teaching of insulator resistance measurement, deterioration judgment, and high-voltage safety procedures.

• Testing Laboratories: Third-party insulator inspection, maintenance verification, and field diagnostic service.

• Cable Maintenance: Checking suspension insulators near overhead line terminations or substation interfaces during outage inspection.

Functional Applications

• Disc suspension insulator resistance measurement

• Outage inspection of transmission line insulator strings

• Substation suspension insulator maintenance

• Detection of low-value insulators and zero-value insulators

• Quantitative evaluation of each insulator unit

• Preventive maintenance for overhead transmission lines

• Railway power system insulator inspection

• Industrial high-voltage insulation maintenance

• Stored test record management by tower number and string number

• Historical data review by string number

• Field screening before insulator replacement

• Verification of deteriorated insulator judgment

• Maintenance report data collection

• Checking instrument status with a 500 MΩ standard resistor

Customer Case

• Industry: Transmission Line Maintenance.

• Problem: A utility maintenance team needed to inspect suspension insulator strings during a planned outage. Appearance inspection could not identify all internal deterioration, and the team needed quantitative resistance values for each disc insulator to decide which units required replacement.

• Testing Process: The technicians charged the VS-8612, checked the probes and standard resistor, and selected storage test mode on site. They entered the tower number and string number, installed the tester on each insulator unit, and ensured the probes contacted the metal fittings at both ends. Each measurement was completed after the audible prompt, and the results were stored by tower and string.

• Result: The team obtained resistance values for each disc in the inspected strings. Units below the alarm threshold were clearly identified by the audible alarm and stored records. The maintenance team used the saved data to confirm replacement requirements and prepare inspection documentation.

• Benefits: The inspection produced quantitative results instead of relying only on visual judgment. Stored records improved traceability, and the lightweight tester allowed technicians to complete repeated measurements efficiently during the outage window.

FAQ

What is the VS-8612 Insulator Resistance Tester used for?

It is used for outage inspection of disc suspension insulators. It measures the insulation resistance of each insulator unit and helps identify low-value or zero-value insulators.

What is the working principle of the tester?

The tester applies DC 5000 V across the two metal fittings of an insulator and measures the insulation resistance. Lower resistance indicates deterioration or insulation weakness.

What is the measurement range?

The measurement range is 100 MΩ to 3000 MΩ. When the measured value is higher than 3000 MΩ, the instrument displays 9999 MΩ.

What is the alarm threshold?

The alarm threshold is 500 MΩ. When the measured value is below 500 MΩ, the instrument gives a continuous audible alarm.

What standards are referenced in the manual?

The manual references DL/T596-2021 and DL/T626-2015 for preventive testing and deteriorated suspension insulator detection.

Can the tester store measurement results?

Yes. In storage test mode, results can be saved by tower number and string number. Historical records can be queried later by date, tower, and string.

How long can the tester work after charging?

The instrument uses a 3.7 V rechargeable lithium battery and supports at least 8 hours of continuous operation.

What safety precautions are required?

Do not touch both probes during measurement because 5000 V high voltage is present between them. Switch off the power before removing probes, and discharge capacitive equipment after testing.
