VS-ZGF500-30 DC High Voltage Generator
Products Details
The VS-ZGF500-30 DC High Voltage Generator is a new-generation intelligent DC withstand voltage testing system developed in accordance with DL/T 848.1-2004 technical standards. Designed for demanding field and laboratory applications, the system provides stable high-voltage DC output with excellent voltage regulation performance and low ripple characteristics.
The equipment consists of an intelligent control unit, high-voltage multiplier tower, fully shielded optical fiber microammeter, discharge rod, and dedicated testing accessories. Through advanced digital control technology and microprocessor-based management, the system supports both manual and automatic testing modes, allowing operators to perform high-voltage testing safely and efficiently.
A large LCD graphic display provides intuitive operation and real-time monitoring of voltage, current, timing, and testing status. Built-in automatic voltage ramping, automatic timing, automatic voltage stabilization, and automatic voltage reduction functions significantly improve testing efficiency while minimizing operator intervention.
The integrated optical fiber microammeter enables precise leakage current measurement directly at the high-voltage side, reducing interference and improving measurement accuracy. The system also incorporates electromagnetic shielding, multi-stage isolation technology, and advanced grounding protection to ensure reliable operation even under severe discharge conditions.
With data storage, test record management, result printing, and optional PC communication functions, the VS-ZGF500-30 provides a complete solution for modern high-voltage DC testing requirements.
| System Specifications | |
| Parameter | Specification |
| Model | VS-ZGF500-30 |
| Rated Output Voltage | 500kV |
| Rated Output Current | 30mA |
| Rated Output Power | 15kW |
| Maximum Charging Current | 45mA |
| Voltage Measurement Accuracy | ±1% F.S. ±2 Digits |
| Current Measurement Accuracy | ±1% F.S. ±2 Digits |
| Overvoltage Setting Accuracy | ≤1% |
| 0.75U1mA Switching Accuracy | ≤1% |
| Ripple Factor | ≤0.5% |
| Voltage Stability | ≤1.0% |
| Output Polarity | Positive / Negative Optional |
| Operating Mode | Manual & Automatic |
| Data Storage | Built-in Test Record Storage |
| Communication Interface | PC Communication Port |
| Display | Large LCD Graphic Display |
| Power Supply | Environmental Conditions | |||
| Parameter | Specification | Parameter | Specification | |
| Input Power Supply | AC 380V Three-Phase | Operating Temperature | -10°C to +40°C | |
| Frequency | 50Hz | Relative Humidity | ≤85% RH | |
| Voltage Tolerance | ±10% | Altitude | ≤1500m | |
| Optical Fiber Microammeter | |
| Parameter | Specification |
| Current Range | 0–40mA |
| Accuracy | 0.50% |
| Input Impedance | <60Ω |
| Overload Current | 200mA |
| Communication | Optical Fiber Transmission |
| Power Supply | AA Batteries |
Standard Accessories
1、Intelligent Control Unit

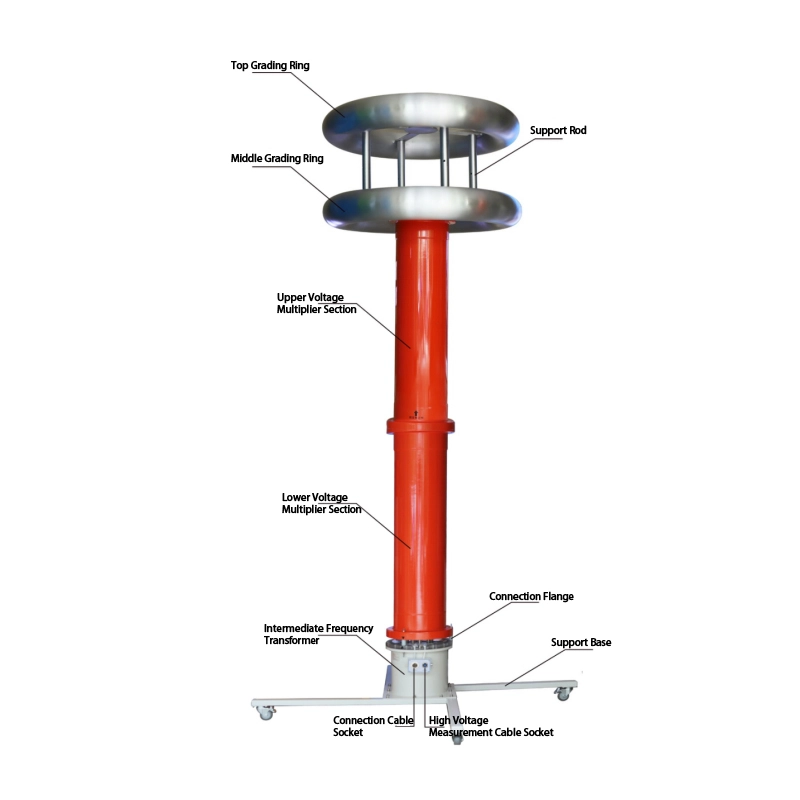

2、High Voltage Multiplier Tower
3、Fully Shielded Optical Fiber Microammeter
4、High Voltage Lead
5、Current Limiting Resistor
6、Optical Fiber Cable
7、Measurement Cable
8、Grounding Cable Set
9、Telescopic Discharge Rod
10、Power Supply Cable
11、User Manual
12、Factory Test Report
13、Calibration Certificate
Product Guide
How the System Works
The VS-ZGF500-30 converts AC input power into high-frequency voltage through the intelligent control unit. The high-frequency voltage is then stepped up and rectified by the high-voltage multiplier tower to generate a stable DC high-voltage output.
During testing, the integrated optical fiber microammeter measures leakage current directly at the high-voltage side and transmits the measurement data to the control unit through optical fiber communication. The intelligent controller continuously monitors voltage and current conditions while providing automatic protection against overvoltage, overcurrent, and flashover events.
Application Scenarios
Power Utilities
Used for DC withstand voltage testing and insulation assessment of power cables, transformers, and surge arresters.
Substations
Suitable for commissioning and preventive maintenance testing of high-voltage equipment.
Cable Manufacturers
Provides factory acceptance testing and quality control for power cables.
Transformer Manufacturers
Supports insulation verification and production testing.
Industrial Facilities
Used for maintenance and condition assessment of critical electrical assets.
Testing Laboratories
Ideal for research, certification, and high-voltage testing applications.
Applications
1、Zinc Oxide Surge Arrester Testing
2、MOA Leakage Current Measurement
3、Power Cable DC Withstand Voltage Testing
4、Transformer DC Testing
5、Generator Insulation Testing
6、Switchgear DC Hipot Testing
7、High Voltage Equipment Insulation Evaluation
8、Factory Acceptance Testing (FAT)
9、Preventive Maintenance Testing
10、Electrical Equipment Diagnostics
Weshine Advantages
Weshine Electric is a professional manufacturer of high-voltage testing equipment and diagnostic solutions. Our VS-ZGF Series DC High Voltage Generators combine advanced digital control technology, precision measurement, intelligent protection functions, and rugged field-ready design. Trusted by utilities, manufacturers, industrial users, and testing laboratories worldwide, Weshine products deliver reliable, accurate, and efficient high-voltage testing performance for modern power systems.
