10A Ground Continuity Tester | VS-2110

Product Details

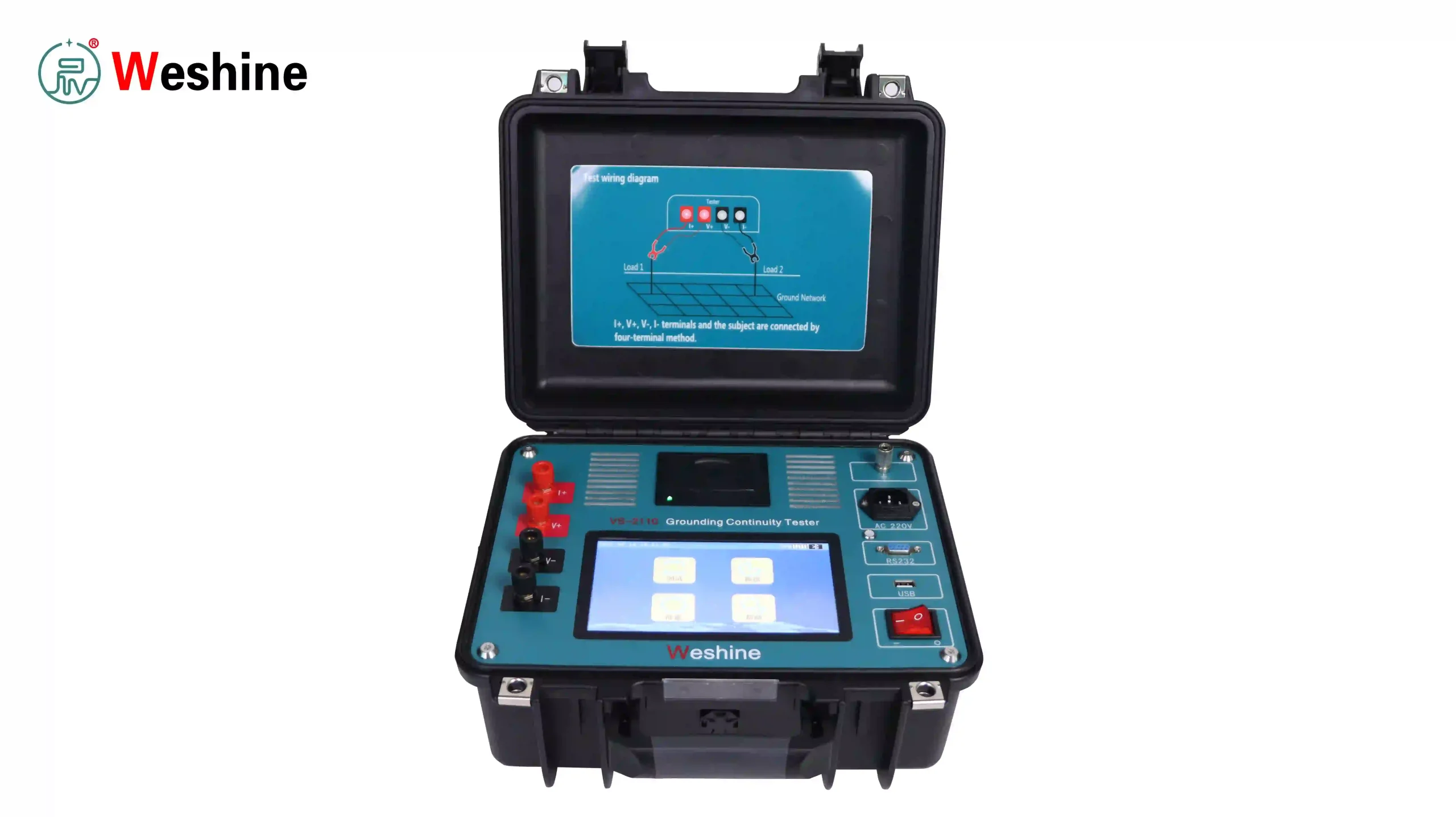

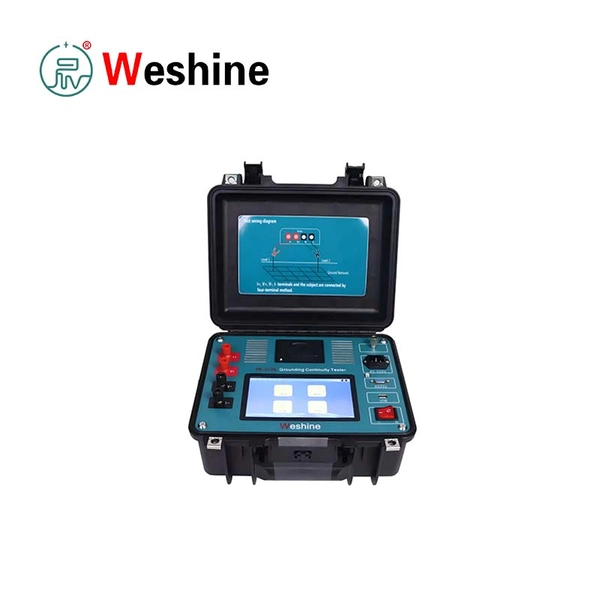

The VS-2110 10A Ground Bond Tester is engineered for verifying the reliability of grounding connections in high-voltage power systems, substations, and industrial electrical installations. Grounding integrity plays a critical role in ensuring safe operation of electrical equipment, and poor connections may lead to increased resistance, equipment malfunction, or safety hazards. Functioning as an indispensable testing tool within our specialized earth resistance tester portfolio, the VS-2110 allows maintenance personnel to quickly identify high-resistance bonds, mechanical looseness, and corrosion defects in ground down-leads.

This instrument adopts a four-wire Kelvin measurement method, effectively eliminating the influence of lead and contact resistance to ensure high-accuracy results. It supports multi-level test currents including 10A, 5A, 1A, 100mA, and ultra-low current modes (≤10 mA), making it suitable for both low-resistance and high-resistance testing scenarios across a broad range from 200 μΩ to 50 kΩ.

The VS-2110 features a large 7-inch color LCD touchscreen with a user-friendly interface that allows operators to easily configure test parameters, monitor real-time resistance values, and manage stored data. It supports quick testing, continuous testing, and timed testing modes (up to 600 s) to meet different field requirements.

Built-in intelligent protection functions include open-circuit alarm, over-limit resistance alarm, and automatic discharge after testing. The system ensures operator safety while maintaining measurement stability in complex electromagnetic environments.

With integrated storage for up to 512 test records, RS232 communication, Bluetooth connectivity, and USB export capability, the VS-2110 enables seamless data management and remote analysis. An integrated thermal printer allows immediate hard-copy report generation on site. Its robust design and strong anti-interference performance make it suitable for long-term field operation in substations and industrial environments.

Features

Item	Specification
Model	VS-2110
Test Current	10A / 5A / 1A / 100mA / ≤10 mA
Resistance Range	200 μΩ – 50 kΩ (depending on current range)
Accuracy	±(0.2% reading + 1 μΩ)
Display	7-inch color LCD touchscreen
Data Storage	512 groups
Communication	RS232 / USB export / Bluetooth
Printing	Built-in thermal printer
Power Supply	AC 200–240V, 50/60Hz
Operating Conditions	Temperature: -10°C to 50°C / Humidity: ≤85% RH (non-condensing)
Weight & Dimensions	Approx. 4.4 kg / 330 × 285 × 150 mm

Technical Parameters

Item	Specification
Model	VS-2110
Test Current	10A / 5A / 1A / 100mA / ≤10mA
Resistance Range	200μΩ – 50kΩ (depending on current range)
Accuracy	±(0.2% reading + 1μΩ)
Display	7-inch color touchscreen
Data Storage	512 groups
Communication	RS232 / USB / Bluetooth
Power Supply	AC 200–240V, 50/60Hz
Operating Temperature	-10°C to 50°C
Humidity	≤85% RH (non-condensing)
Weight	Approx. 4.4 kg
Dimensions	330 × 285 × 150 mm

Product Guide

1. Preparation

Place the VS-2110 securely on a stable surface. Connect the instrument grounding terminal reliably to earth ground. Insert the four-wire Kelvin test leads into the dedicated current and voltage sockets on the front panel.

2. Startup & Lead Connection

Connect the power cord to an AC 200–240V supply and power on the unit. Attach the heavy-duty Kelvin clamps across the ground connection under test, ensuring clean metal contact on both sides of the joint.

3. Parameter Setup

Select the desired test mode (Quick, Continuous, or Timed Test) on the 7-inch color touchscreen. Choose the appropriate output test current (10A, 5A, 1A, or 100mA) and configure resistance alarm thresholds as required.

4. Measurement

Start the test run. The instrument automatically applies the regulated DC current and measures the resulting voltage drop using the 4-wire method, displaying real-time resistance values instantly on the screen.

5. Data Handling & Printing

Upon test completion, save the data into internal memory (up to 512 records). Print a physical test receipt using the integrated thermal printer or export test logs via USB/Bluetooth for report generation.

6. Shutdown

Stop the test cycle, switch off the power supply, disconnect the Kelvin test leads safely, and pack the instrument and accessories into the protective case.

Applications

The VS-2110 is widely used in:

1. Substation Grounding Inspection: Routine evaluation of grounding grids, down-leads, and structural metal bonding.

2. Power Plant Equipment Bonding: Ground bond testing for power generators, step-up transformers, and switchgear.

3. Transmission & Distribution Lines: Testing tower grounding systems and overhead ground wire connections.

4. Industrial Electrical Grounding: Verification of protective earth (PE) conductors in petrochemical, metallurgical, and manufacturing plants.

5. Lightning Protection Systems: Inspecting down-conductors and earth terminations for lightning protection compliance.

6. Railway Infrastructure: Ground continuity verification for traction substations, signaling boxes, and rail bonding.
